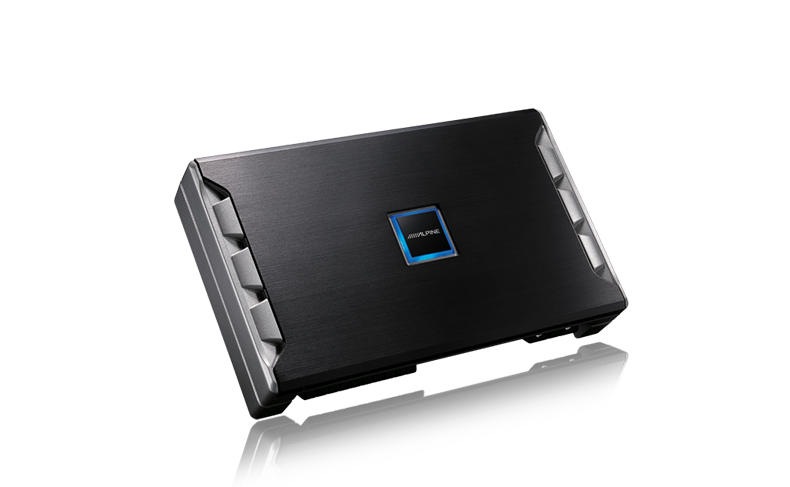

Alpine PDR-V75

PDR 4 Channel + Mono 1300w (max) Amplifier

Description

The fully digital PDR-V75 4-Channel + Mono (5-Channel) Amplifier provides powerful bass, big dynamic sound, non-shutdown performance, and easy vertical or horizontal installation.

Each PDR amp is unmatched in its class for power density performance (watts per cubic cm) and damping factor. For tremendous power at all levels, with hard-hitting bass, and outstanding S/N ratios and frequency response, plus the Thermal Performance Stability helps sustain output power and prevent shutdown of the amplifier.

With a compact chassis, stylish good looks and incredible sound quality, the PDR Digital Amp range will take any sound system to the next level.



Remote Bass Knob Ready (RUX-KNOB)

Features

Class-D Digital Power Amps
Compact Chassis
Easy Access Controls
Speaker Level Input (Requires KCE-SP2R)
Remote Sensing Turn On
Bridgeable
Input gain adjustment: 0.2V-8V (0.1 – 4V for mono)
Bass EQ
Variable High Pass/Low Pass Filters
Thermal Protection
Rotatable Alpine Badge
Remote Bass Knob Ready (RUX-KNOB)

Specifications

Output
Output channels: 5 Channels

Power
Power @14.4V 1% THD)
– 14.4V 2Ω: 4 x 100W + 1 x 350W
– 14.4V 4Ω: 4 x 75W + 1 x 250W
– 14.4V 4Ω: 4 x 200W + 1 x 250W
Max Power Output: 1300W

Function
Filter:
– Ch1-4: Variable OFF/LP/HP Selectable
– Ch5: Variable LPF
LP: 50Hz-400Hz -24dB/oct (5ch only)
HP: 50Hz-400Hz -12dB/oct
Subsonic Filter: 8Hz-40Hz -24dB/oct
Bass EQ: 0dB to + 12dB Variable

Dimensions
270mm W x 50.8mm D x 165mm H
