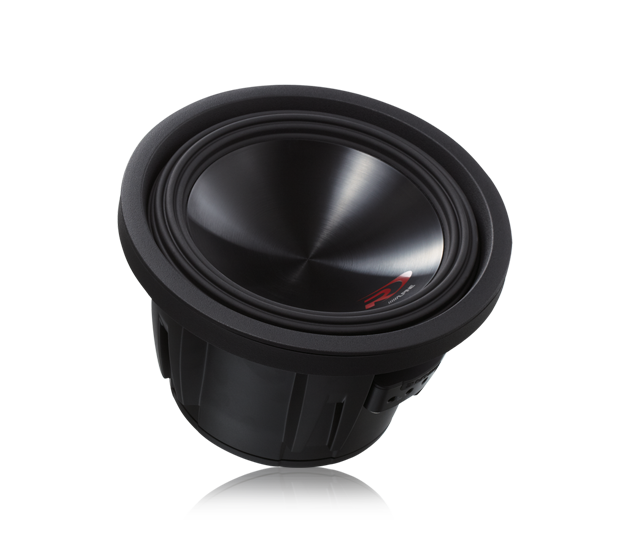

Alpine SWR-10D2 10″ subwoofer

10 inch 300ow (peak) 2 ohm subwoofer

Description

Type-R Subwoofers offer unique Alpine technology and massive power handling to achieve even cleaner and deeper bass extension, faster and more accurate transients, and greater output capability.

With more power handling, and patented Alpine technology for lower distortion and higher SPL, the new Type-R subs take performance to all new heights.

Features

Kevlar-Reinforced Carbon Fibre Cone
Aluminium honeycomb
Kevlar-Reinforced pulp for maximum strength
High-efficiency thermal management
High-Amplitude Multi-Roll Surround
heavy-gauge push terminals
Peak Power Handling: 3000W
RMS Power Handling: 1000W
Nominal Impendance: 2ohms+2ohms
Frequency Response: 26Hz-200Hz
Mounting Dimensions: 230.5mm diameter x 149mm depth

Specifications

General
Sealed: 10″ Frequency Response: 26Hz-200Hz
Power Range: 300W – 1000W RMS
RMS Power Handling: 1000W Peak
Power Handling: 3000W
Magnet Weight: 111oz
Voice Coil Diameter: 65.5 mm (2.6″)

Thiel-Small Parameters
Sensitivity (1W/1m): 82dB
DC Resistance: 1.95ohms + 1.95ohms
Inductance: 1.89 mH
Free Air Resonance: 31 Hz Equivalent Stiffness: 18L
Mechanical Q: 7.84
Electrical Q: 0.54 Total Q: 0.51
Cone Area: 333cm²
Linear Excursion: 20 mm
Mechanical Travel: 70 mm
Note: Specifications are subject to change without notice.

Sealed box range
Net Internal Volume: 0.4/0.85 ft³

Recommended Sealed Box
External box dimensions: 12″x12″x10.5″
Gross internal volume: 0.58 ft³
Net internal volume: 0.50 ft³
F3, Qtc: 46 Hz, 0.74

Vented box range
Net internal volume: 0.75-1.3 ft³
Tuning: 35-39 Hz

Recommended vented box
External box dimensions: 23″ x 12″ x 11.5″
Gross internal volume: 1.3 ft³
Dimensions: 10in² (10″x1″)
Gross internal volume: 20″
Vent displacement: 0.2 ft³
Net internal volume (Vb): 1.0 ft³
F3, ripple, Fb: 29Hz, 6.1dB, 36Hz

Notes:
Recommended enclosure net internal volume is based upon 3/4″ (19mm) MDF enclosure construction.
